综合光传输系统FW6600

组网灵活，占用空间较小，具有超强的可扩展性。
支持CWDM/DWDM/EDFA/OLPS/OTAP等多种模式业务板卡热插拔。
支持 SDH，SONET，Ethernet，SAN，OTN，Video 等业务接入。
支持单通道最大速率 100G,200G,400G
支持单纤单向，单纤双向，双纤双向的链型、星型和环型等多种组网方式。
支持不同厂商的客户端接入，与多种厂家的设备互联互通，支持客户端设备为单模(1310nm/1550nm)、多模(850nm/1310nm)、电口(RJ45)等，可实现OADM光分插复用功能，中间节点可上下波长。
支持基于 SNMP统一网管平台，网管方式有 CLl(telnet 及 console)、Web、NetView (图形化界面)。
支持1+1 电源热插拔余备份，交直流电源可选。

现在查询下载

类别

热门产品

产品详细信息

综合光传输系统FW6600

综合光传输系统FW6600系列产品是FIBERWDM瑞东科技推出的新一代大容量、多业务接入的光网络平台，该平台具有业务集成度高，端口密度大，业务类型丰富，配置灵活等特点，且支持基于 SNMP 协议的 C/S或 B/S 架构图形化管理界面，为管理、维护提供非常清晰的故障定位，可节省维护成本;该平台广泛应用于电信运营商、广电、电力、教育、云计算以及信息安全等领域，面向全光网络，应用于国家、省际、省内干线，本地城域网以及各种专网的建设;该平台具有传输信号独立透明，多路信号合波传输，节省光纤资源，安全可靠的特点，可帮助客户组建一个长距离、高可靠、安全灵活、抗灾能力强的光传输网络，是目前应对光缆资源紧张的最佳解决方案。

产品图

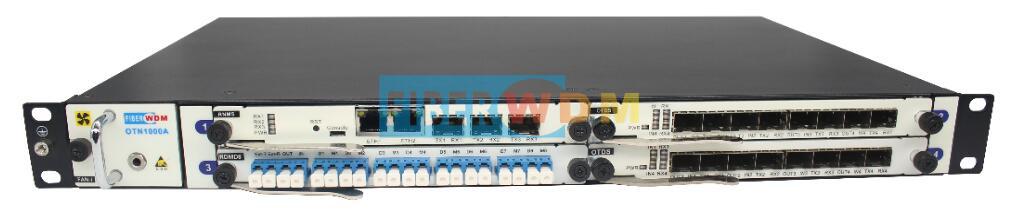

1U 机箱正面

1U 机箱背面

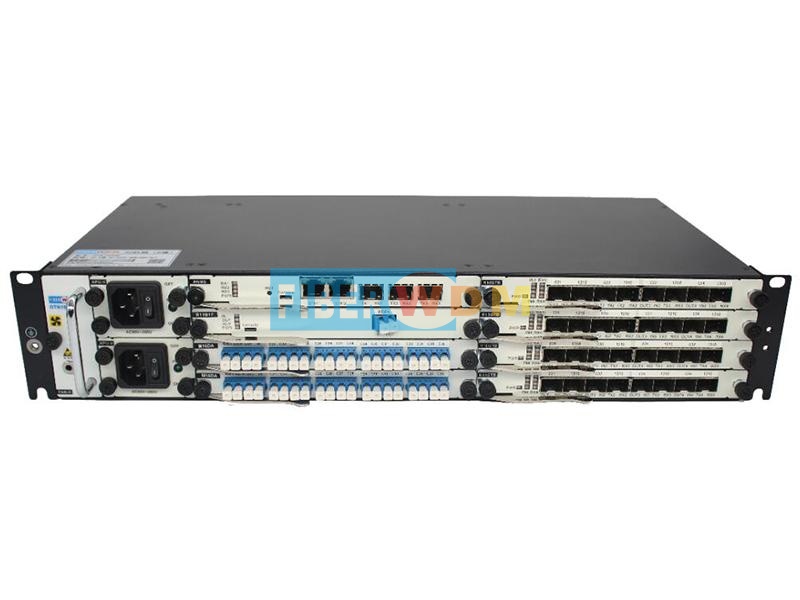

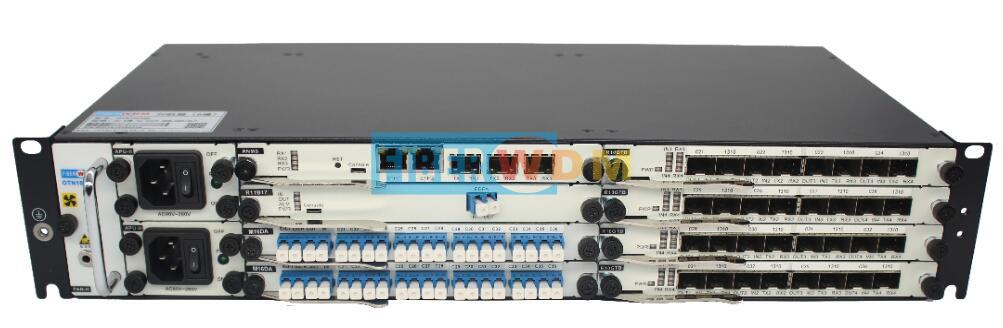

2U 机箱正面

2U 机箱背面

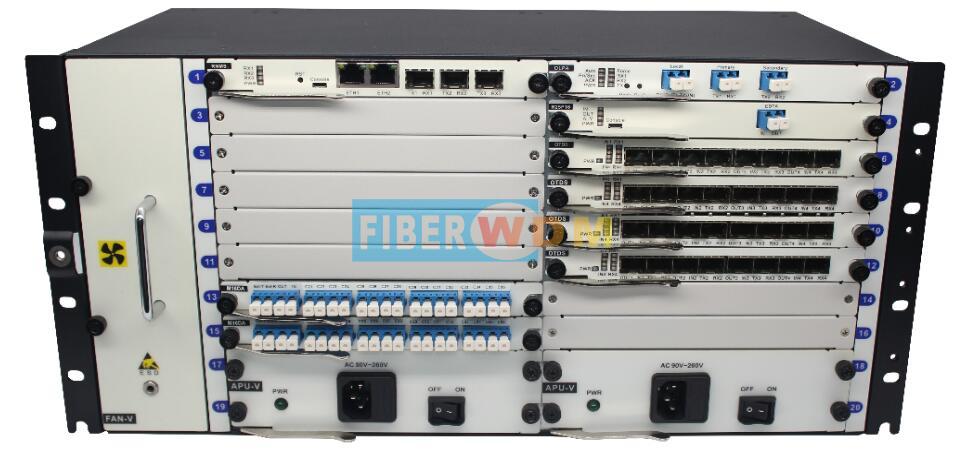

4U 机箱正面

4U 机箱背面

产品参数

系统参数		1U机箱	2U机箱	4U机箱
设备尺寸(mm)		440(W)44(H)300(D)(mm)	440(W)88(H)300(D)(mm)	440(W)177(H)265(D)(mm)
业务槽位		4槽	8槽	16槽
功耗		<120W	<200W	<300W
波长范围		DWDM:1529.16nm~1567.14nm CWDM:1271nm~1611nm
波道间隔		50/100 GHz fixed 37.5-400 GHz flex-grid
支持业务类型		SDH, SONET, Ethernet，SAN，OTN，Video
单通道最大速率		100G, 200G, 400G
光接口传输方式		采用2R传输方式，各通道支持32M~111.81Gbit/s 之间的速率透明传输；采用3R传输方式，各通道速率支持 155Mbit/s、622Mbit/s、1.25Gbit/s、2.488Gbit/s、4GFC、8GFC、10GFC、11.3Gbit/s、25Gbit/s、40Gbit/s、56Gbit/s、100Gbit/s、200Gbit/s.400Gbit/s 等可选;
网络拓扑结构		点对点、链形、星形、环形、环带链、相切环和网状组网
网管方式		CLI、 NetView、Web
环境要求	工作温度	-10℃~50℃
	存储温度	-40℃~80℃
	相对湿度	5%~95% 无凝结
电源要求（标值）		交流电源(AC) 电压范围:支持 90V~264V 50/60Hz 直流电源(DC) 电压范围:支持 - 36V~60V
安全与EMC		符合FCC、UL、CE、TUV、CSA标准

订购信息

产品型号	产品描述
FW6600A	1U 4槽位业务板卡，双电源槽位，带风扇单元, 带双交电源100~240V或双直源电源36~72V 440(W)44(H)300(D)(mm)
FW6600B	2U 8槽位业务板卡，双电源槽位，带风扇单元, 带双交电源100~240V或双直源电源36~72V 440(W)88(H)300(D)(mm)
FW6600C	4U 16槽位业务板卡，双电源槽位，带风扇单元, 带双交电源100~240V或双直源电源36~72V 440(W)177(H)265(D)(mm)
