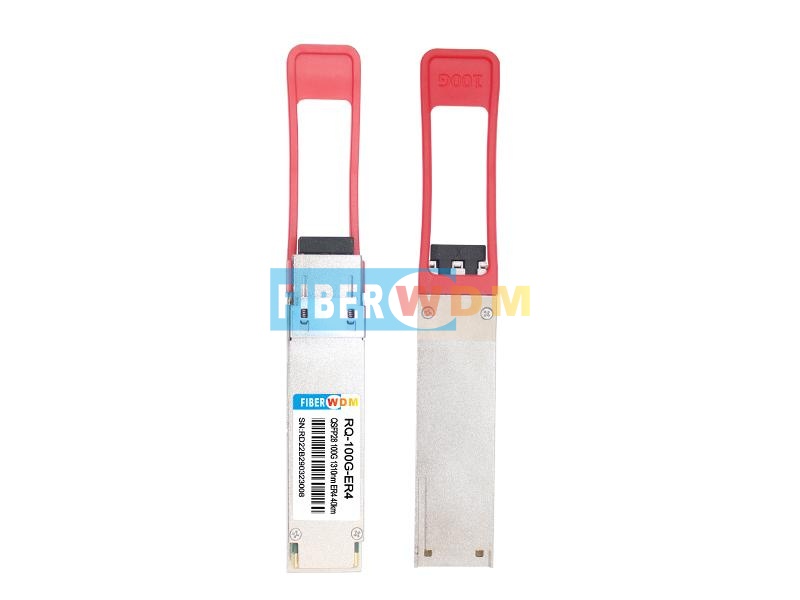

100Gb QSFP28 ER4 40Km 1310nm LC Optical Transceiver

100G QSFP28 ER4 optical transceiver module, support 100Gb/s and up to 40 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on.
  • 产品详细信息

100G QSFP28 ER4 40Km 1310nm LC Optical Transceiver



Features



  • Supports100Gb/s bit rate,4x25G data rate per channel
  • LAN WDM: 1295.56/1300.05/1304.58/1309.14nm
  • Up to 40km over SMF
  • Duplex LC Connector
  • Hot Pluggable QSFP form factor
  • Digital diagnostic monitoring support
  • Single 3.3V power supply
  • RoHS-10 compliant and lead-free
  • Maximum power consumption4.5W
  • All-metal housing for superior EMI performance
  • Case operating temperature:0℃ to+ 70℃/ -40℃ to +85℃


Order information


Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(km)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RQ-100G-ER4

100

1310nm

40

LAN WDM EML

-2.9~4.5

APD

<-14.65

0~70

RQ-100G-ER4-I

100

1310nm

40

LAN WDM EML

-2.9~4.5

APD

<-14.65

-40~85
