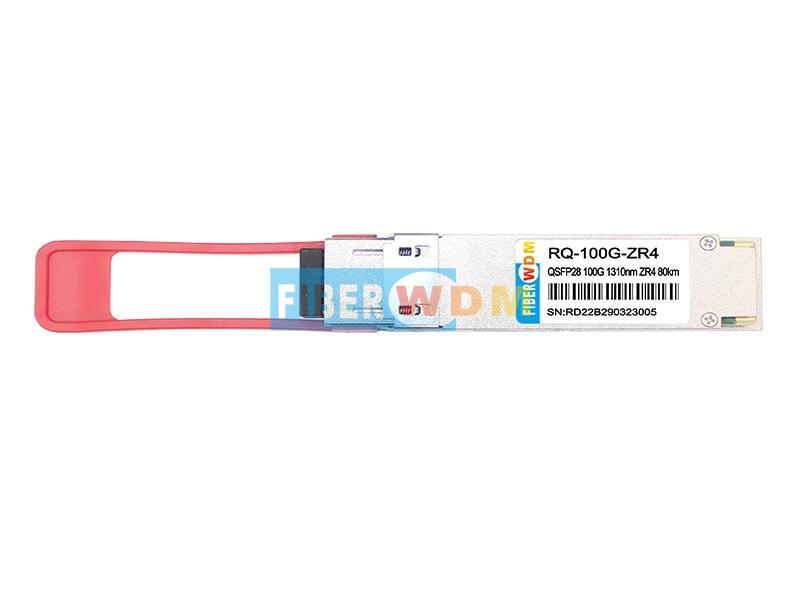

100Gb QSFP28 ZR4 80Km 1310nm LC Optical Transceiver

100G QSFP28 ZR4 optical transceiver module, support 100Gb/s and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on.
  • 产品详细信息


100G QSFP28 ZR4 80Km 1310nm LC Optical Transceiver



Features




  • Supports 100Gb/s bit rate,4x25G data rate per channel
  • LAN WDM: 1295.56/1300.05/1304.58/1309.14nm
  • Up to 80km over SMF
  • Duplex LC Connector
  • Hot Pluggable QSFP form factor
  • Digital diagnostic monitoring support



  • Single 3.3V power supply
  • RoHS-10 compliant and lead-free
  • Maximum power consumption 5.5W
  • All-metal housing for superior EMI performance
  • Case operating temperature: 0℃ to+ 70℃/ -40℃ to +85℃



Order information


Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(km)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RQ-100G-ZR4

100

1310nm

80

LAN WDM EML

2~4.5

PIN+SOA

<-24

0~70

RQ-100G-ZR4-I

100

1310nm

80

LAN WDM EML

2~4.5

PIN+SOA

<-24

-40~85
