10G DWDM SFF 40km Transceiver -40℃ To 85℃

Features

  • 1550nm or DWDM EML Laser with TEC,Available in all C‐Band Wavelengths on the 50GHz
  • PIN- TIAReceiver
  • LC duplex connector or customizable pigtail fiber
  • Single Channel+ 3.3V Power Supply
  • The CDR off-line mode supports 155-9.95 GBIT/s bit rate, and the CDR mode supports 9.95-10.3125 GBIT/s bit rate
  • Internal Transmitting/Receiving CDR
  • -40℃ to 85℃ Working Industria Temperature
  • Suitable for40km SMF connection
  • Comply with SFF-8472 Rev 10.2
  • Whole Metal Shell and Excellent electromagnetic interference performance
  • Completely comply with RoHS Standard
  • 产品详细信息

RSFD-10GD-CXX Series


155M~10Gb/s 40km DWDM SFF Transceiver Module, Duplex LC, +3.3V,50GHz, DWDM EML, Single mode


10G dwdm SFF 40km transceiver



FIBERWDM's RSFD-10GD40-Cxx is a surface mounted transceiver module, it supports 155-9.95 GBIT/s bit rate in the CDR off-line mode, and9.95-10.3125 GBIT/s bit rate in CDR mode.Suitable for40km SMF connection, and-40℃to 85℃ Working Industrial Temperature, it grate used in DWDM transfer mission system.


Diagrammatic Layout



Product Information


Type

Bite Rate

Wavelength of Laser(nm)

Transmission Range(km)

Fiber Type

Connector

Temperature

1550

155M-10.3125G

1550

40

SMF

LC

-40~+85℃

DWDM

155M-10.3125G

50Ghz DWDM

40

SMF

LC

-40~+85℃

 DWDM wavelength Guide, please check in datasheet, or contact us.



Absolute Maximum Ratings


Parameter

Simbol

Min

Typical

Max

Unit

Annotation

Power Voltage

Vcc3

-0.5

-

+3.6

V

2

Temp of Storage

Ts

-40

-

+85

°C

2

Humidity of Working

RH

0

-

+95

%

2

Note2:Exceeding any of these values can permanently destroy the device.


Recommended Working Environment


Parameter

Simbol

Min

Typical

Max

Unit

Annotation

Working Temperature of Shell

TC

-40

-

+85

°C



Working Voltage

Vcc

3.14

3.3

3.47

V



Working Current

Icc

-

-

600

mA



Working Rate Bit

BR

155

-

10.3125

Mbps





Electrical Property


Parameter

Simbol

Min

Typical

Max

Unit

Annotation

Transmitter

Differential Input Voltage Swing

Vin,P-P

180

-

700

mVPP



Differential Input Impedance

ZIN

80

100

120

Ω



Transmitting Fault

Running Normal

VOL

0

-

0.8

V



Transmitter Fault

VOH

2.4

-

VCC+0.4

V



Transmitter OFF

Running Normal

VIL

0

-

0.8

V



Laser OFF

VIH

2.4

-

VCC+0.3

V



Receiver

Differential data output swing

Vout

400

600

850

mV



Differential Output Impedance

ZD

80

100

120

Ω



Output Rising Time (20-80%)

TR

25

-

-

ps



Output Falling Time (20-80%)

TF

25

-

-

ps



Receiving Signal Detection

Running Normal

VOL

0

-

0.4

V



Loss of Receiving signal

VoH

2.4

-

VCC

V





Optical Property


Parameter

Simbol

Min

Min

Typical

Max

Annotation

Optical Emission Characteristics

Bit Rate

BR

155

-



Mbps





10.3125

Gbps



Range of Central Wavelength

λc1

-

1550

-

nm



λc2

1529.16

-

1547.72

nm



Transmit off optical power

Poff

-

-

-30

dBm



Average Optical Power

P0

-3

-

2

dBm

1

Extinction Ratio

ER

8.2

-

-

dB



Side Mode Suppression Ratio

∆λ

30





nm



Optical Receiving Characteristics

Bit Rate

BR

155

-



Mbps





10.3125

Gbps



Receive Sensitivity

Pmin

-

-



-16



dBm

2

Receiving overload sensitivity

Pmax

2

-

-

dBm

2

Range of Receiving Wavelength

λc1

-

1550

-

nm



λc2

1529.16

-

1547.72

nm



Received signal detection

judgment

LOSD

-

-

-27

dBm



Received Signal Loss Judgment

LOSA

-40

-

-

dBm



Signal detection lag

LOSH

0.5

-

6

dB



Note:

1. Fiber is 9/125 Single Mode

2. Test Condition is Code Pattern:PRBS 231-1,Test Rate:10.3125Gbps,BER=10E-12

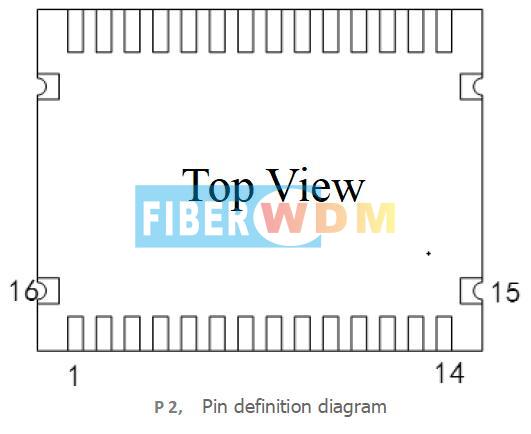

Definiation of PINS




Recommended Interface Circuit

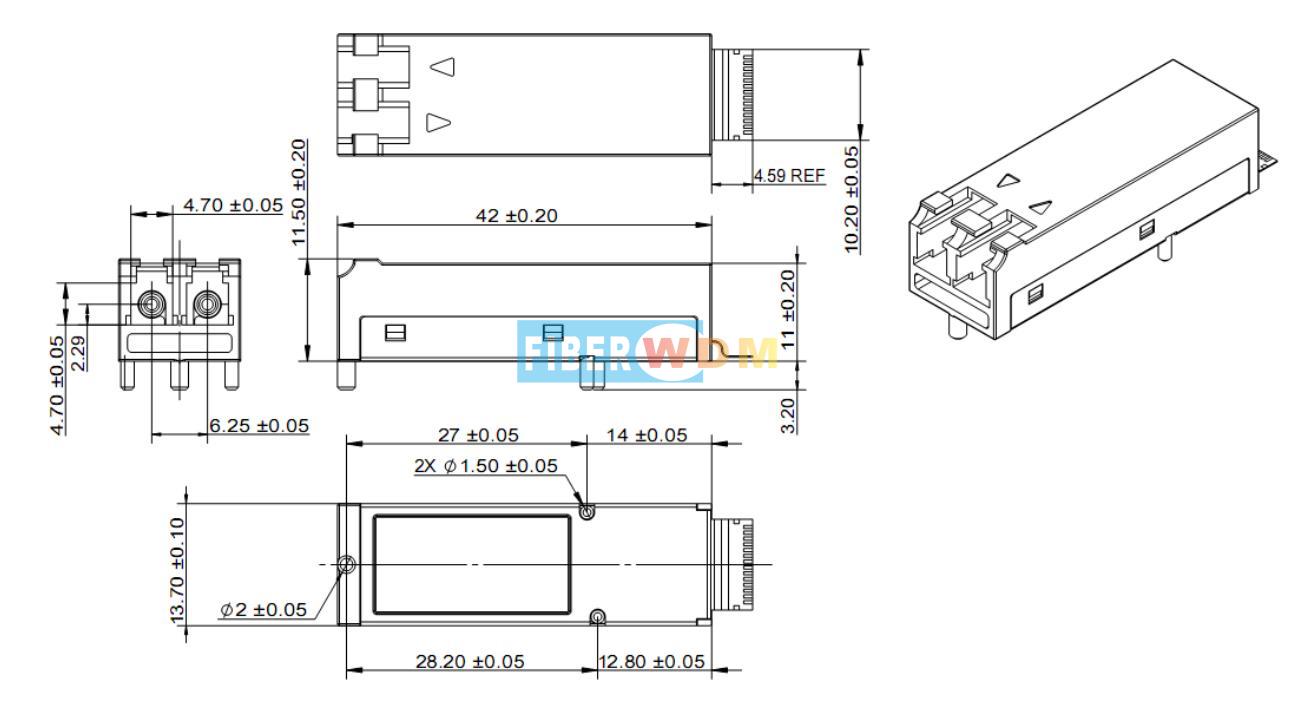

Structure Diagram


1.LC duplex connector

P4,  LC duplex connector



 2.Customizable pigtail fiber(the pigtail fiber length is 0.9mm to 1m)



P5,  Customizable pigtail fiber



 P6,Mechanical Principle Diagram
