3端口 200GHZ DWDM 滤波器 DWDM 波分器件

  • Single channel 3 port 200GHZ DWDM filter, DWDM C-Band.
  • Low insertion loss
  • High channel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability
  • 产品详细信息

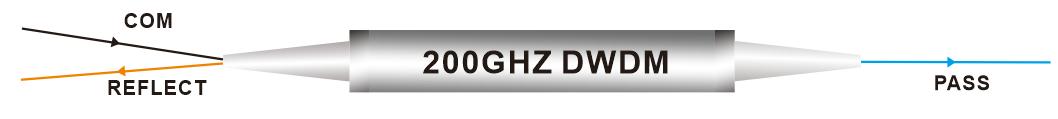

3 Port 200GHZ DWDM Filter DWDM ITU Component


FIBERWDM’s DWDM ITU Components are the result of years of telecommunication experiences in thin-film filter technology. Individual components are available on ITU channel spacing of 200 GHz.



These devices exceed the requirements of Telcordia GR-1221. They demonstrate low insertion loss and temperature insensitivity, and reliable performance in varieties system applications.



Product

 200GHZ DWDM Filter Steel

 200GHZ DWDM Filter Steel



Features

  • Low insertion loss
  • High channel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability

Applications

  • Access networks
  • Metro WDM systems
  • Long haul WDM systems
  • Enterprise networks



Specifications


Wavelength range

C- or L-band ITU channels 186.6 to 196.1 THz

Technology

TFF (Thin Film Filter)

Passband

≥+/- 33 GHz

Transmission passband ripple

≤0.30dB

Transmission insertion loss

≤1.1dB

Reflection passband ripple

≤0.20dB

Reflection insertion loss

≤0.40dB

Transmission isolation (adj channel)

≥30dB

Transmission isolation (non-adj channel)

≥50dB

Reflection isolation

≥12dB

Polarization dependent loss

≤0.2dB

Polarization mode dispersion

≤0.2ps

Directivity

≥50dB

Return loss

≥45dB

Optical power handling

≥500

Temperature

Operating:-40 to +85℃

Storage:-40 to +85℃

Fiber type

SMF-28e

Package dimension

f∮5.5 xL34mm

Note

1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.

2) PMD and chromatic dispersion values are guaranteed by design.

3) Specifications are subject to change without notice



Dimensions drawing(mm)

100GHZ DWDM Filter

   Spectral plot (dB)



Order information


RD-D

- Package

-Connector Type

U/A

-Channel Plan

-Fiber Type

-Fiber Length

-200G



S: Steel

0: No connector

U: UPC

C19:

25: 250um Fiber

005: 0.5+/-0.1m

200G:200GHZ



G:Glass

1: LC

A: APC

C21

90: 900um Fiber

01: 1.0+/-0.1m







2: SC



C23



others







3: FC



others











4: Others











Example: RD-DS1U-C19-2505-200G: 3Port 200GHZ DWDM C19 1562.23nm LC/UPC 250um 0.5M Fiber Steel
