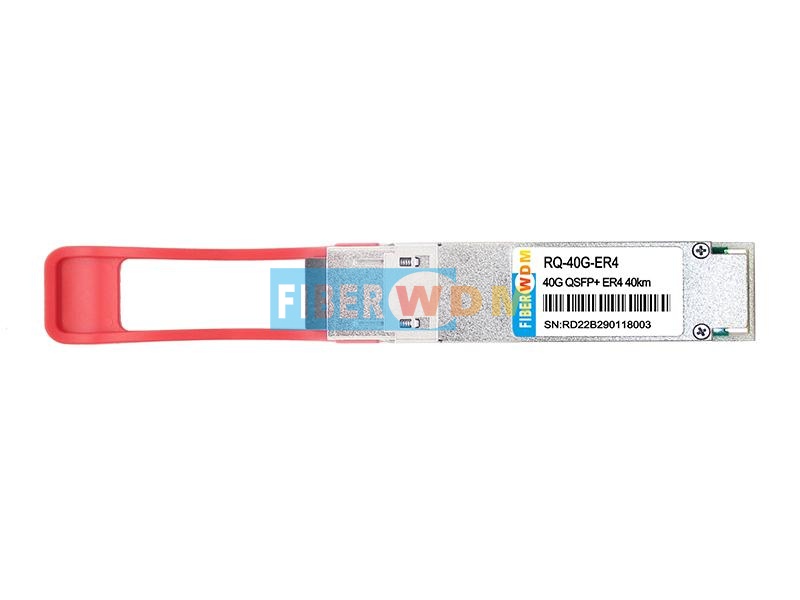

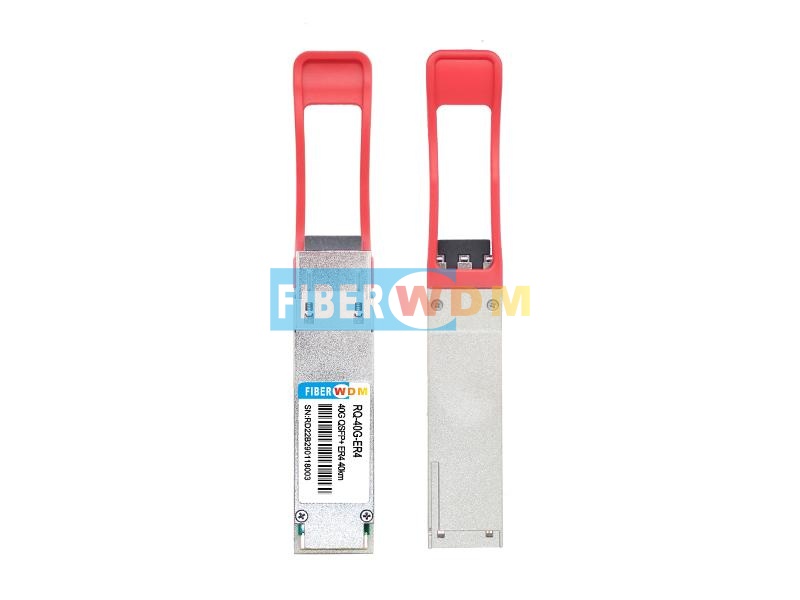

40G QSFP+ ER4 40Km 1310nm LC Optical Transceiver

40G QSFP ER4 optical transceiver module, support 40Gb/s and up to 40 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on.
  • 产品详细信息

40G QSFP+ ER4 40Km 1310nm LC Opitcal Transceiver



Features



  • Supports50Gb/s bit rate,4x11.2G data rate per channel
  • CWDM 4: 1271/1291/1311/1331nm
  • Up to 40km over SMF
  • Duplex LC Connector
  • Hot Pluggable QSFP+ form factor
  • Digital diagnostic monitoring support
  • Single 3.3V power supply
  • RoHS-10 compliant and lead-free
  • Maximum power consumption3.8W
  • All-metal housing for superior EMI performance
  • Case operating temperature:0℃ to+ 70℃/ -40℃ to +85℃


Order information


Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(km)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RQ-40G-LR4

40

CWDM 4

40

DML

-2.7~4.5

APD

<-19

0~70

RQ-40G-LR4-I

40

CWDM 4

40

DML

-2.7~4.5

APD

<-19

-40~85
