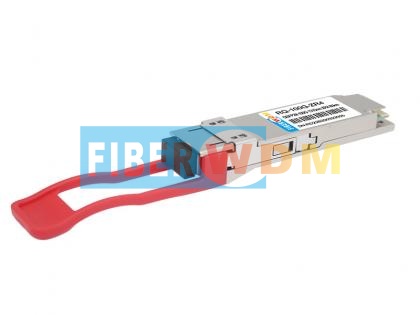

40Gb/s QSFP28 DWDM PAM4 Dual LC Transceiver

40G QSFP28 DWDM optical transceiver module, support 48*40Gb/s DWDM System and up to 80 km(with DCM and EDFA) transmission on SM fiber, it works in high-speed IDC connection solutions.
  • 产品详细信息

40G DWDM QSFP+ Transceiver , C2 1 ~C60 , 80KM( with DCM and EDFA) Duplex LC ,DDM



Fiberwdm’s 40G DWDM QSFP+ optical transceiver modules are designed for multiple 40GE links up to 80km distance over standard G.652 single mode optical fibers (SMF). For short distances, e.g. several kilometers, no EDFA and dispersion compensation modules (DCM) are required. But for relative longer distances, EDFA and DCM are required to compensate the fiber link loss and fiber dispersion.



The module’s DWDM transmitter is on the ITU-T defined 100GHz spacing DWDM grid, and is Laser Class 1 compliant according to International Safety Standard IEC-60825. The receiver section uses a wideband PIN-PD detector and is DWDM channel independent. Digital diagnostics functions are available via the I2C interface as specified by QSFP+ MSA specification SFF-8636.


 40G DWDM QSFP+ Transceiver


Features

  • Single wavelength 40Gbps transmission
  • Fixed wavelengths on DWDM 100GHz Grid
  • Up to 80km over SMF (with DCM and EDFA)
  • Duplex LC connector
  • Power dissipation 3.5W (Max) u
  • 4 x 10G Electrical interface at host side
  • Compliant with QSFP+ MSA SFF-8679
  • Compliant with QSFP+ MSA SFF-8636
  • QSFP+ MSA digital monitoring functions


Order information


Part No

Data Rate

Package

Center Wavelength

(nm)

Tx

Rx

Distance

Interface

Temp.

RQ-40GD-C21

40G

QSFP+

1560.61

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C22

40G

QSFP+

1559.79

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C23

40G

QSFP+

1558.98

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C24

40G

QSFP+

1558.17

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C25

40G

QSFP+

1557.36

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C26

40G

QSFP+

1556.55

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C27

40G

QSFP+

1555.75

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C28

40G

QSFP+

1554.94

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C29

40G

QSFP+

1554.13

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C30

40G

QSFP+

1553.33

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C31

40G

QSFP+

1552.52

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C32

40G

QSFP+

1551.72

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C33

40G

QSFP+

1550.92

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C34

40G

QSFP+

1550.12

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C35

40G

QSFP+

1549.32

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-40GD-C36

40G

QSFP+

1548.51

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-40GD-C37

40G

QSFP+

1547.72

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-40GD-C38

40G

QSFP+

1546.92

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA

LC

0°C to 70°C

RQ-40GD-C39

40G

QSFP+

1546.12

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C40

40G

QSFP+

1545.32

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C41

40G

QSFP+

1544.53

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C42

40G

QSFP+

1543.73

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C43

40G

QSFP+

1542.94

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C44

40G

QSFP+

1542.14

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C45

40G

QSFP+

1541.35

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C46

40G

QSFP+

1540.56

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C47

40G

QSFP+

1539.77

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C48

40G

QSFP+

1538.98

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C49

40G

QSFP+

1538.19

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C50

40G

QSFP+

1537.40

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C51

40G

QSFP+

1536.61

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C52

40G

QSFP+

1535.82

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C53

40G

QSFP+

1535.04

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C54

40G

QSFP+

1534.25

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C55

40G

QSFP+

1533.47

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C56

40G

QSFP+

1532.68

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C57

40G

QSFP+

1531.90

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C58

40G

QSFP+

1531.12

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C59

40G

QSFP+

1530.33

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C

RQ-40GD-C60

40G

QSFP+

1529.55

-1~4dB

<-11 dBm  Pre-FEC BER < 5E-5

80km

(with DCM and EDFA)

LC

0°C to 70°C
