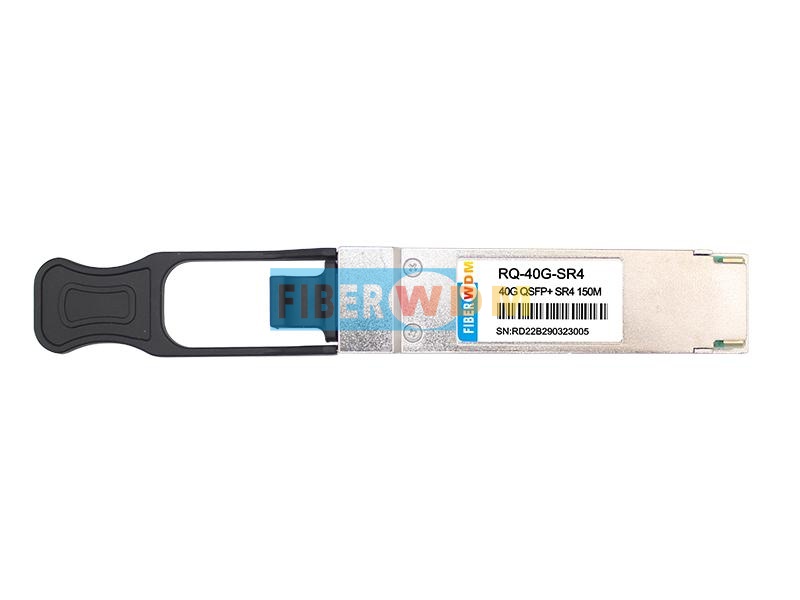

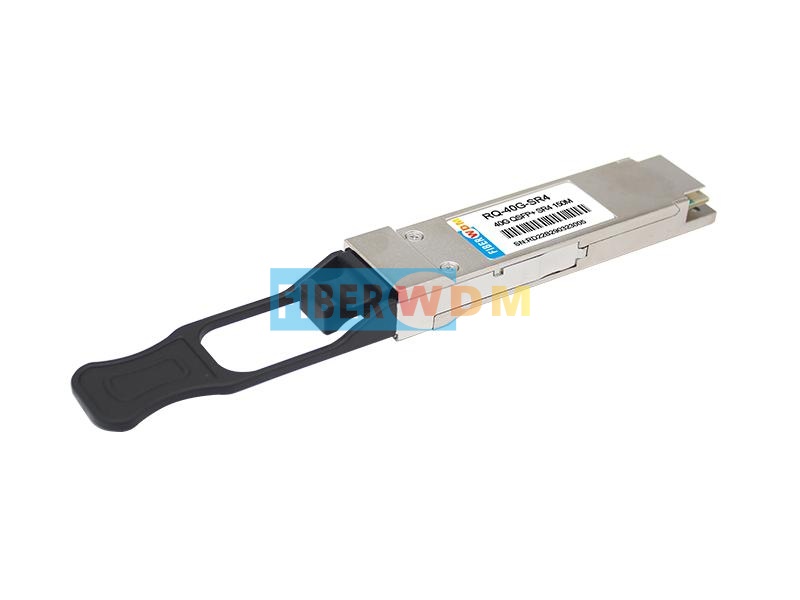

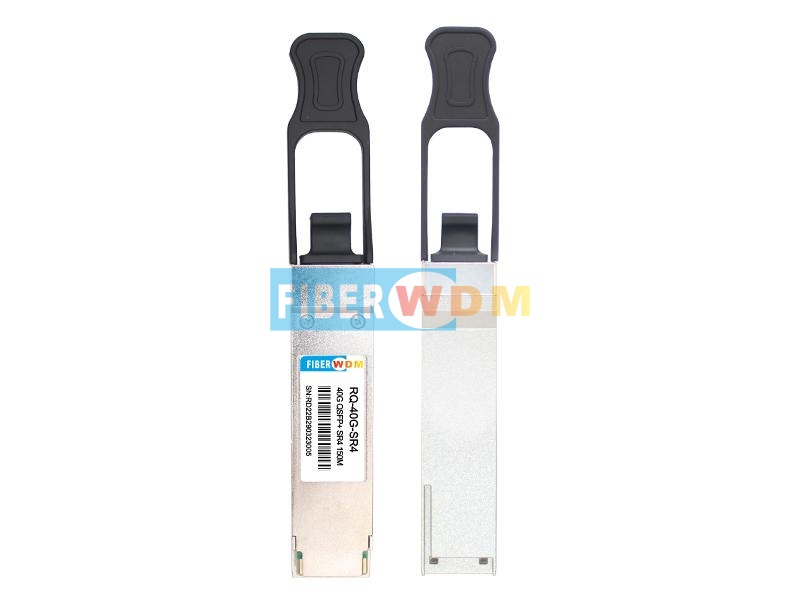

40Gs QSFP+ SR4 150m 850nm MPO Optical Transceiver

40G QSFP+ SR4 100m 850nm MPO Optical Transceiver,support 40Gb/s and up to 100m transmission on MM fiber, it works in high-speed IDC connection solutions and so on.


Features

  • 4 independent full-duplex channels
  • Up to 10.5Gbps data rate per channel
  • MTP/MPO optical connector
  • QSFP MSA (SFF-8436) compliant
  • Digital diagnostic capabilities
  • Capable of over 100m transmission on OM3
  • multi-mode fiber
  • CML compatible electrical I/O
  • Single +3.3V power supply
  • Operating case temperature: 0~70C
  • XLPPI electric interface (with 1.5W Max power)
  • RoHS-6 compliant
  • 产品详细信息

40G QSFP+ SR4 100m 850nm MPO Optical Transceiver



QSFP+ 40G SR4 Transceiver module is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module. It provides increased  port density and total system  cost  savings. The  QSFP full -duplex optical  module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate data rate of 40Gbps over 100 meters of OM3 multi-mode fiber.



An optical fiber cable with an MPO/MTPTM connector can be plugged into the QSFP  module receptacle.



The module operates by a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt and Low Power Mode, are available with the modules. A 2 -wire serial interface is available to send and receive more complex control signals, and to receive digital diagnostic information.



The RQ-40G-SR4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (SFF-8436). It has been designed to meet the harshest external operating conditions including temperature,  humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two -wire serial interface.


Absolute Maximum Ratings*Note4

Parameter

Symbol

Min

  Max

Unit

StorageTemperature

Tst

-20

85

degC

RelativeHumidity (non-condensation)

RH

-

85

%

Supply Voltage

VCC

-0.5

3.6

V

Voltage on LVTTL Input

Vilvttl

-0.5

VCC+0.5

V

LVTTL Output Current

Lolvttl

-

15

mA

Voltage on Open Collector Output

Voco

0

6

V

Note4: Exceeding any one of these values may destroy the device permanently.


Recommended Operating Conditions

Parameter

Symbol

  Min

Typical

Max

Unit

Operating Case Temperature

Topc

-5

-

70

C

Power Supply Voltage

VCC

3.1

-

3.5

V

Power Supply Current

ICC

-

-

350

mA

Total Power Consumption    (XLPPI)



-

-

1.5

W

Fiber Length:2000 MHz ∙ km 50μm MMF (OM3)



0.5



-

100

m

Fiber Length:4700 MHz ∙ km 50μm MMF (OM4)



0.5



-

150

m



Performance Specifications – Electrical

Parameter

Symbol

  Min

Typical

Max

Unit

Notes

Data Rate, each Lane



-

10.3125

10.5

Gbps



Power Consumption (XLPPI)



-

-

1.5

W



Supply Current

ICC

-

0.75

1.0

A



Control I/O Voltage,High

VIH

2.0

-

VCC

V



Control I/O Voltage, Low

VIL

0

-

0.7

V



Inter-Channel Skew

TSK

-

-

150

ps



Transceiver Power On Initialization

Time



Tporinit



-



-



2000



ms



RESETL Duration

-



10

-

us



RESETL De-assert time

-



-

100

ms



Power on time

-



-

100

ms



Transmitter (XLPPI)



AC Common mode Voltage

Tolerance (RMS)

-

15

-

-

mV



Tx Input Diff Voltage

VI

90

-

1600

mV



Tx Input Diff Impedance

ZIN

80

100

120




Differential Input Return Loss



See IEEE 802.3ba 86A.4.11



dB

10MHz- 11.1GHz

Eye MaskCoordinates {X1,X2

Y1,Y2}



0.1, 0.31, 95, 350



UI

mV

Receiver (XLPPI)

AC Common mode Voltage

Tolerance (RMS)

-

-

-

7.5

mV



Differential Output Return Loss

See IEEE 802.3ba 86A.4.2.1



dB

10MHz- 11.1GHz

Common-mode Output Return Loss

See IEEE 802.3ba 86A.4.2.2



dB

10MHz- 11.1GHz

Rx Output Diff Voltage

Vo

-

600

800

mV



Rx Output Rise and Fall Time

Tr/Tf





35

ps

20% to 80%

Eye MaskCoordinates {X1,X2

Y1,Y2}



0.29, 0.5,150, 425



UI

mV



Performance Specifications – Optical

Parameter

Symbol

Min

Typ.

Max

Unit

Center Wavelength

λt

840

850

860

nm

RMS Spectral Width

Pm

-


0.65

nm

Average Optical Power, each Lane

Pavg

-7.6

-

+1

dBm

Optical Modulation Amplitude(OMA)

Poma

-6

-

+3

dBm

TDP,each Lane



-

4

dB

Extinction Ratio

ER

3

-

-

dB

Relative Intensity Noise

Rin

-

-128

dB/Hz

Optical Return Loss Tolerance



-

12

dB

Transmitter Eye Mask Definition



Complied with IEEE802.3ba





Average Launch Power OFF

Transmitter, each Lane

Poff



-

-

-30

dBm

Receiver

Center Wavelength

Λr

830

850

860

nm

Average Power at Receiver Input,each Lane



-9.5



-

2.4

dBm

Receiver Reflectance



-

-

-12

dB

Los Assert

LosA

-30

-

-

dBm

Los Dessert

LosD

-

-

-14

dBm

Los Hysteresis

LosH

0.5

-

-

dB


Order information

Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(m)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RQ-40G-SR4

40

850nm

OM3:100M

OM4:150M

VCSEL

-7.6~1.0

PIN

<-9.5

0~70
