8路双纤双向 C31-C38 DWDM 波分复用 LGX 盒子模块

IL<2.4dB , 100GHZ DWDM MUX DEMUX
Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic
Multiplexing of 8 Channels over a Dark Fiber Network
Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
Passive devices, No Power No Cooling Required
Support Metro, Regional and Long Haul DWDM Networks

现在查询

类别

热门产品

产品详细信息

Dual Fiber8CH C31-C38 DWDM MUX DEMUX, With 1310nm，Monitor and EXP Port, LC/UPC,LGX Box, and 2 Slots 1U Rack

The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C31 to C38(1552.52nm~1546.92nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 8ch DWDM with 1310nm port is totally passiveand LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is:( wavelength ports＜2.4dB; 1310nm port＜0.8dB).And it conjunct with The DWDM amplifiers and DCM device, the8ch DWDM transfer system can support a long distance transmission.

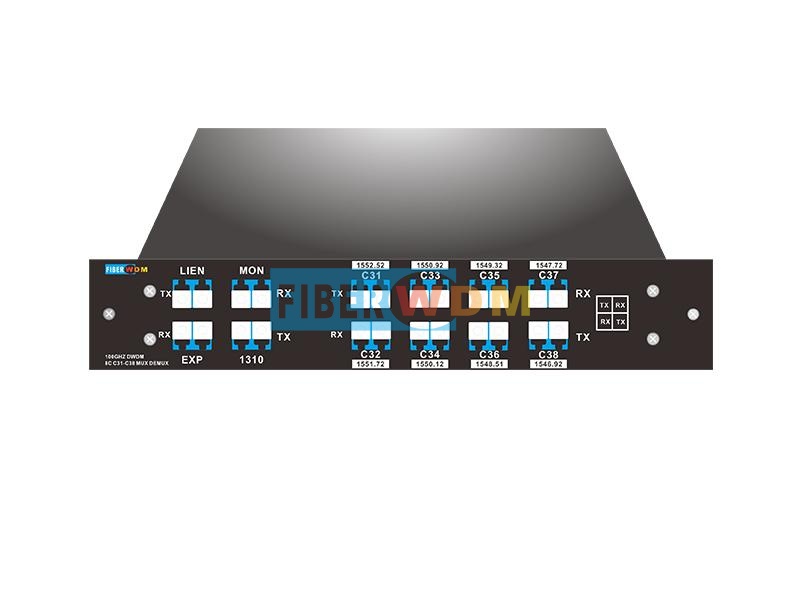

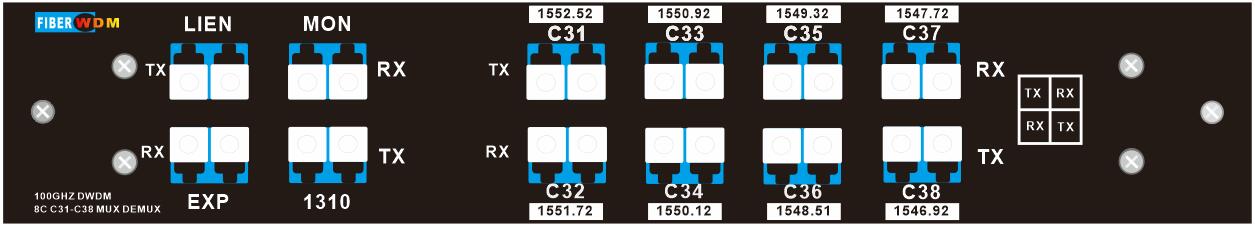

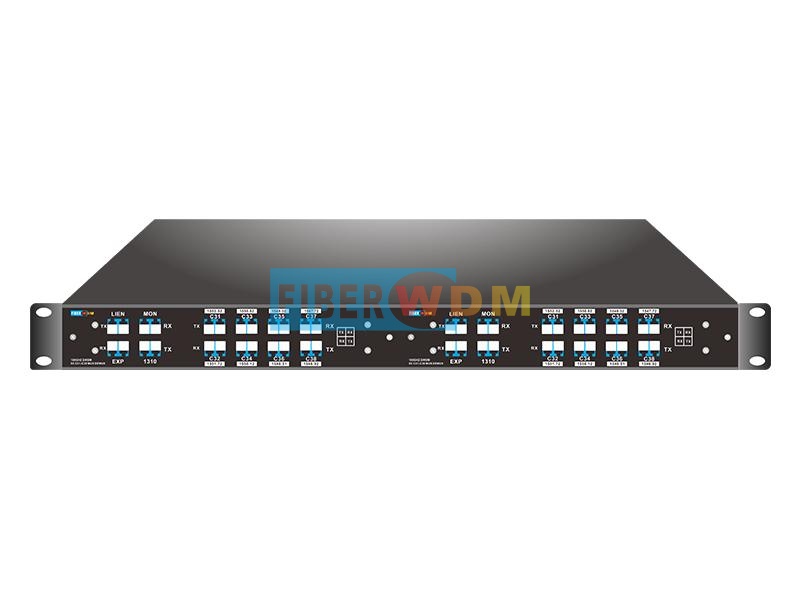

Product Panel

8CH DWDM MUX DEMUX Dual Fiber

8CH DWDM MUX DEMUX Dual Fiber

1310nm portcan support 1G LX/SX, 10G LR, 40G ER4/LR4, 100GLR/ER4/LR4/ZR4; it forExisting Legacy Traffic.
Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

Line Link

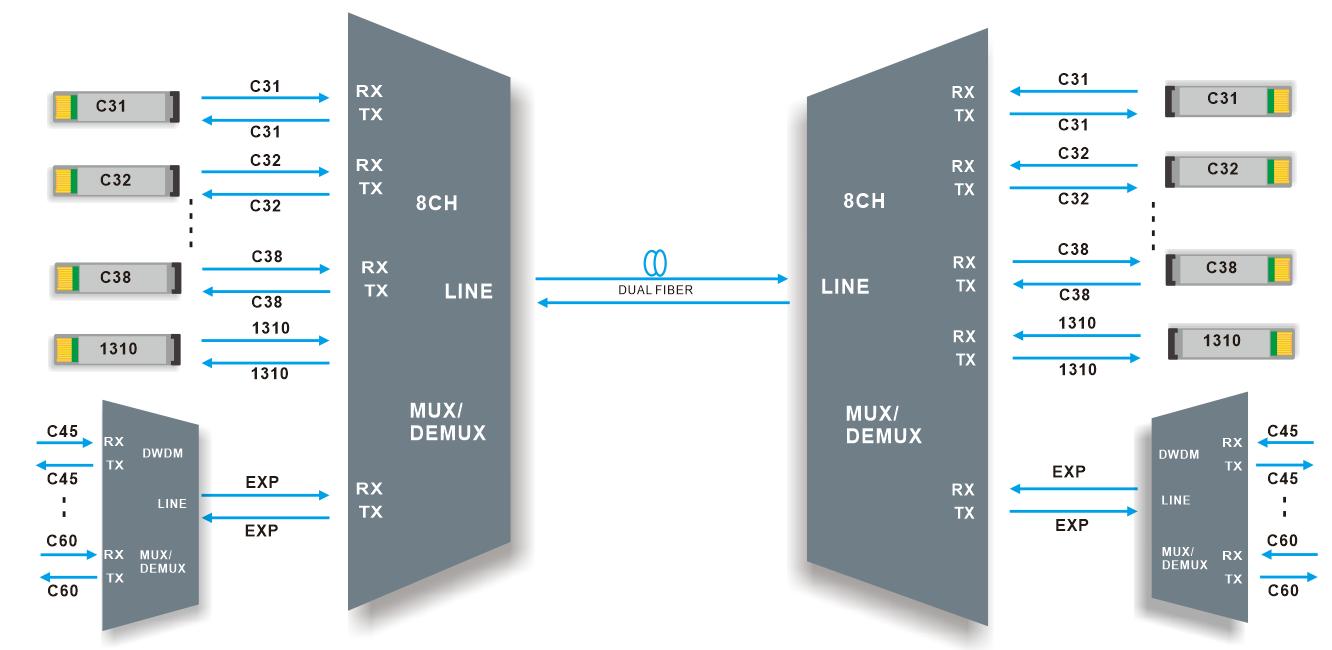

8CH DWDM MUX DEMUXDual fiber transmission

8CH DWDM MUX DEMUXDual fiber transmission

8 Channels DWDM MUX DEMUX and with 1310nm Port, supports8 channels difference business in two optical fiber for point-to-point transmission.

It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

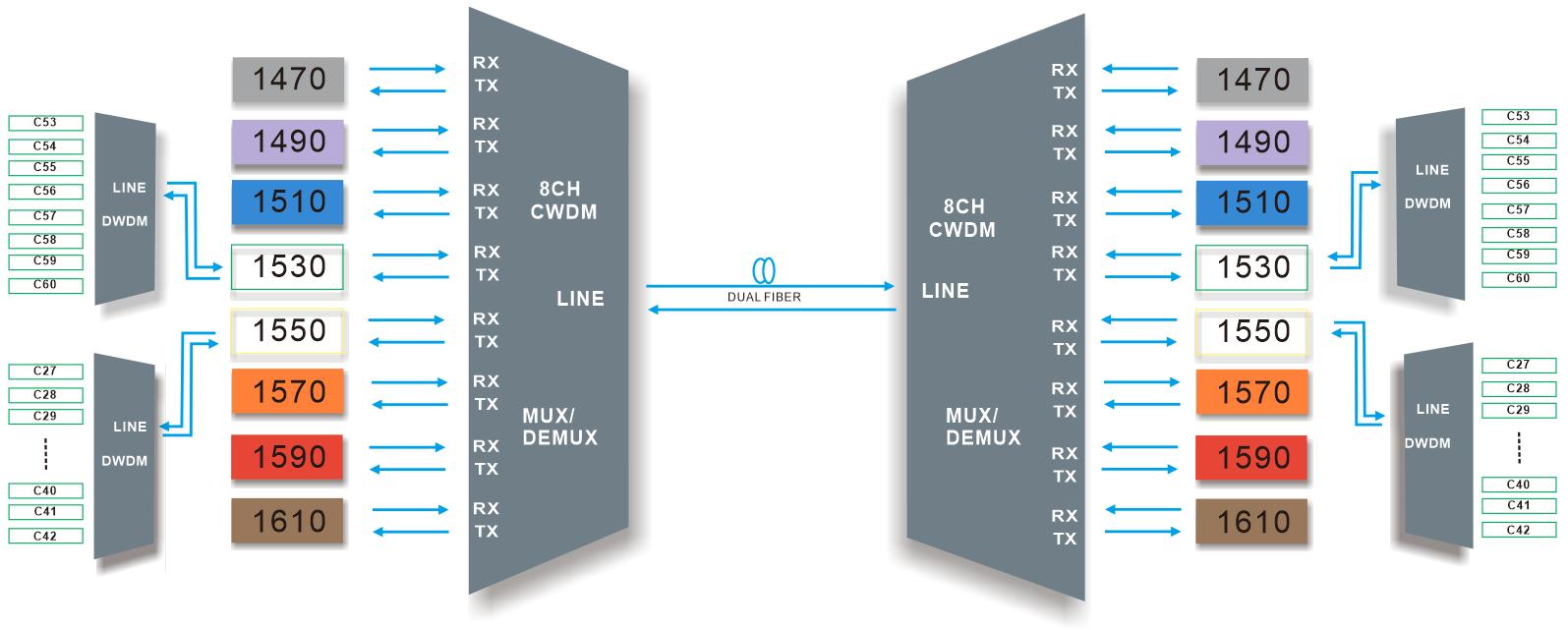

Hybrid DWDM over CWDM Network

CWDM wavelengths range from 1260-1625nm, channel spacing is 20nm, which actually cover all the range of DWDM wavelengths (1470-1625nm). And DWDM wavelengths have much smaller channel spaces (0.8nm). Therefore, the CWDM wavelengths near DWDM wavelengths can be used to transmit the DWDM wavelengths.

Product Specification

Wavelength	8channels C31-C38（or other waves)	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤2.4dB	Link Loss	≤3.2dB
1310nm Port Pass Band Width	1260nm~1360nm	Center Wavelength Accuracy	±0.05nm
Insertion Loss @ 1310 port	≤0.8dB	Insertion Loss @ 1% Mon	≤ 26dB
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C

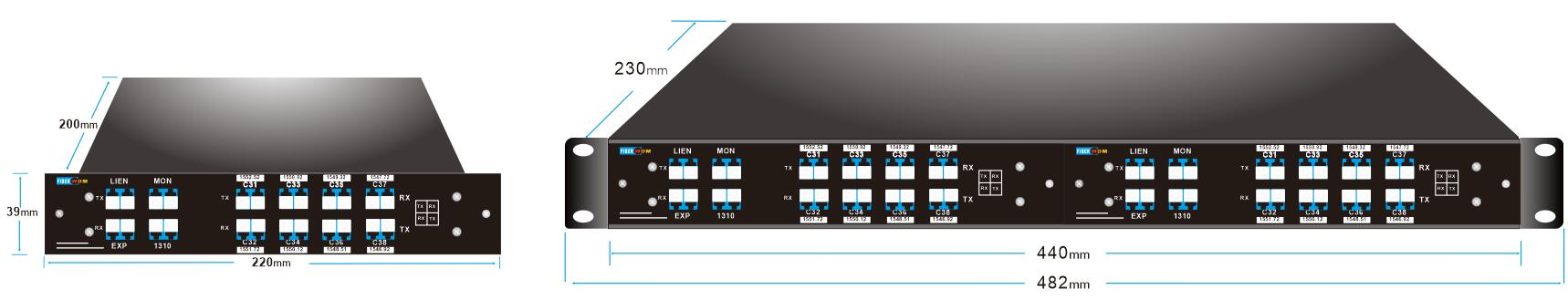

Net Weight	LGX Box: 0.5KG 2slot 1U Rack: 1.5KG	Dimensions (HxWxD)	LGX Box:22020039mm 1U Rack : 44440230mm

Note: Specified with connectors.

Package Information

LGX BOX Plug in 2-Slot 1U Rack 2-Slot 1U Rack for LGX BOX

Order Information

Product No.	Product description
DMD8-1U01-C2128-31M	DWDM MUX DEMUX 8CH (C21-C28) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box
DMD8-1U01-Cxxxx-31M	DWDM MUX DEMUX 8CH (Cxx-Cxx) With EXP and 1310nm, Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box (Customized)
1U02-2LGX	19” inch 1U rack with 2 slot for Plug-in LGX box, 44023044mm

Note:We Support Customized Design, please contact us by email.
