8路 双纤双向 C40-C47 DWDM OADM 波分复用设备

  • IL<2.4dB , 100GHZ DWDM OADM MUX DEMUX
  • Multiplexing of 8 Channels Drop and Add, over a Dark Fiber Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • 产品详细信息

Dual Fiber 8CH C40-C47 DWDMOADM,WEST TO EAST, LC/UPC, 1U Rack



The8ch DWDM OADM is designed by FIBERWDM, wavelength from C40 to C47(1545.32nm~1539.77nnm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.


The 8ch DWDM OADM port is totally passive DWDM device, and support drop 8 channels business and add 8 channels business in two fibers. The loss of The waves to west or east is<2.4dB, line loss of west to east( or east to west) is<4.8dB.



Product Panel


 8CH DWDM OADM Dual Fiber



Line Link




8CH DWDM OADMDual fiber transmission



A to C has 32ch DWDM and one 1310 business transmission in two fiber, and A to B, B to C have 8ch business transmission in two fiber. In B side, drop 8channels and add 8 channels in two fiber.

It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.



Product Specification



Wavelength

8channels OADM C40-C47  (or other waves)

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤2.4dB( waves to west or east)

Link Loss

≤4.8dB ( west to east)

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

1.5KG

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Package Information


8CH DWDM MUX DEMUX OADM 19” 1U Rack

8CH DWDM MUX DEMUX OADM 19” 1U Rack



Order Information



Product No.

Product description

DOA8-1U01-C4047

DWDM OADM Drop and Add 8CH (C40-C47) ,west to east, Dual fiber, LC/UPC , 1U Rack

Note:We Support Customized Design, please contact us by email.

想知道这个产品吗?

发送 信息
留言

如果您对我们的产品感兴趣并想了解更多详细信息,请在此处留言,我们将尽快答复您。

相关产品

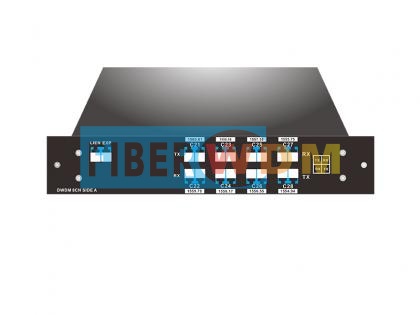

8ch 100G DWDM MUX DEMUX dual fiber 8路 双纤双向 C31-C38 DWDM 波分复用 LGX 盒子 模块
IL<2.4dB , 100GHZ DWDM MUX DEMUX Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic Multiplexing of 8 Channels over a Dark Fiber Network Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks
8ch 100G DWDM MUX DEMUX dual fiber 8路 双纤双向 C53-C60 DWDM 波分复用 LGX 盒子模块
IL<2.4dB , 100GHZ DWDM MUX DEMUX Monitor Port for Troubleshooting, 1310nm Port for Legacy Traffic Multiplexing of 8 Channels over a Dark Fiber Network Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks

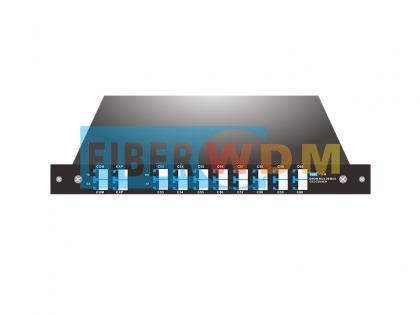

8ch 100G DWDM MUX DEMUX Single fiber 8路 (16波) 单纤双向 DWDM 波分复用 LGX 盒子模块
IL<3.5dB , 100GHZ DWDM MUX DEMUX Multiplexing of 8 Channels over a Single Fiber Bidi Network Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics Passive devices, No Power No Cooling Required Support Metro, Regional and Long Haul DWDM Networks

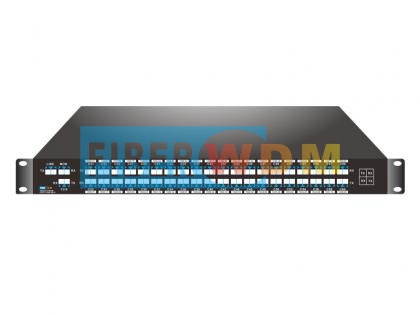

40ch 100G DWDM MUX DEMUX 40路 双纤双向 C21-C60 DWDM 波分复用设备
