Single Fiber 1310nm-1610nm CWDM MUX DEMUX

8路（16波) 单纤双向 CWDM 带监控口 LGX 盒子模块

CWDM MUX DEMUX,Multiplexing up to 8 ch for single fiber BIDI transmission
1% Monitor Port for Signal Analyzing or Troubleshooting
Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
Applied to Metro, Regional CWDM Networks

现在查询下载

类别

热门产品

产品详细信息

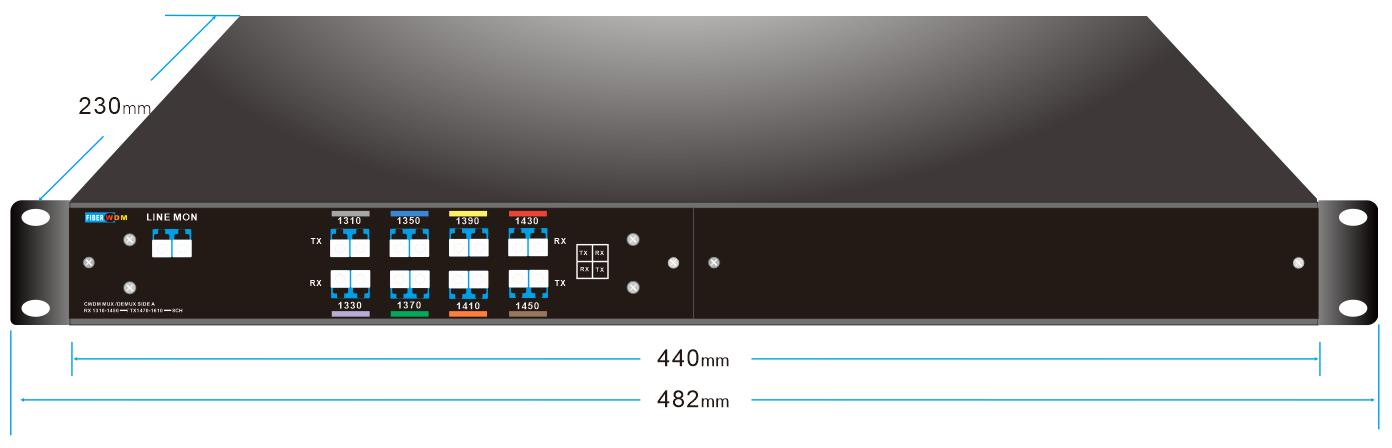

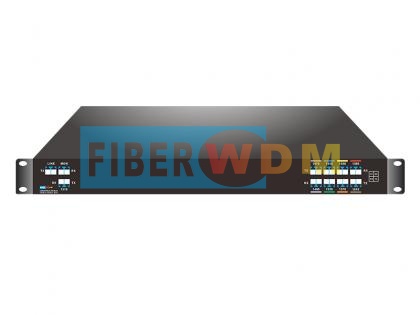

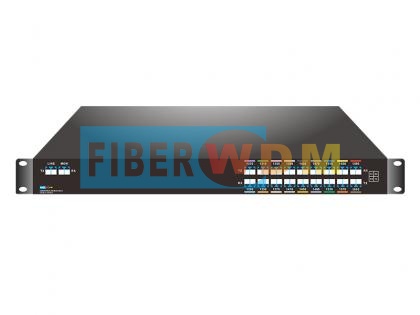

Single Fiber 8 Channels (16waves) 1310-1610nm CWDM MUX DEMUX With Monitor Port, LC/UPC, Plug-in LGX Box and 2slot 1U Rack

The single fiber 8 channels(16 waves) CWDM MUX DEMUX is designed by FIBERWDM, A side’s waves are : RX 1310nm to 1450nm/ TX 1470nm to 1610nm, and B side’s waves are:RX 1470nm to 1610nm/ TX 1310nm to 1450nm; it ispassive CWDM device and plug-in LGX box, can plug in 2slot 1u rack, support 8 channels difference business inone optical fiber for bi-direction point-to-point transmission.

It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

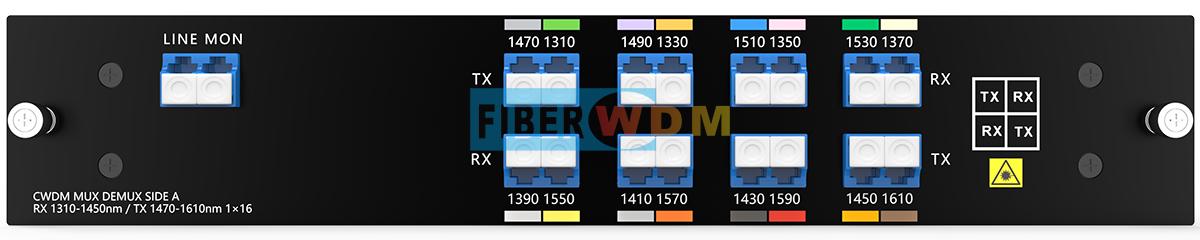

Product Panel

Single Fiber 8CH CWDM MUX DEMUX

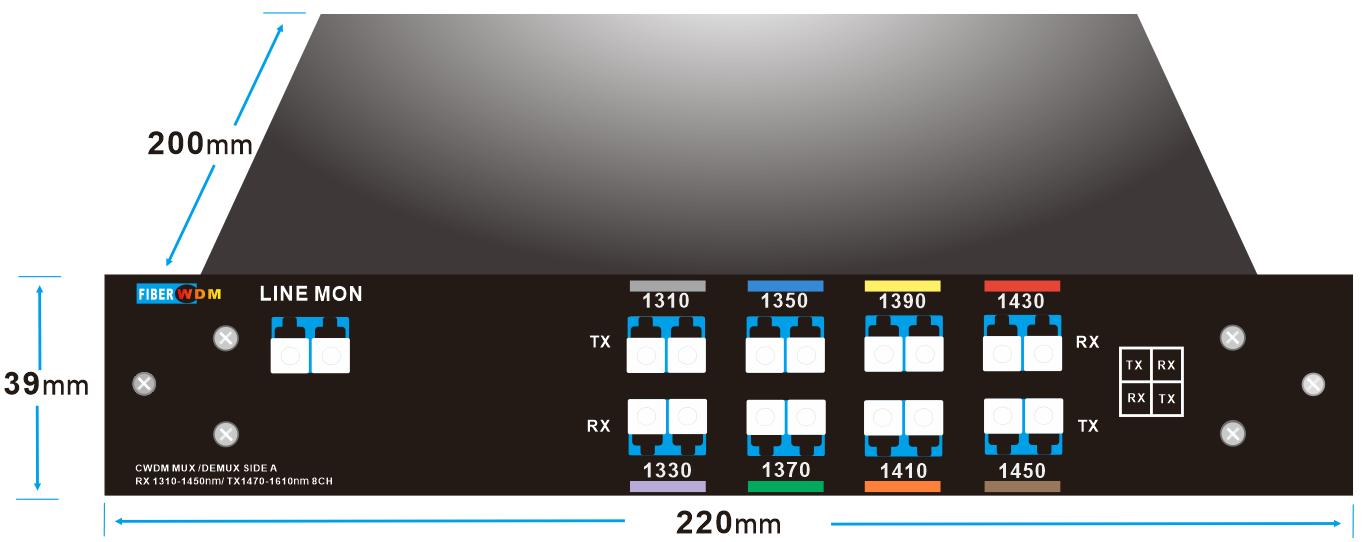

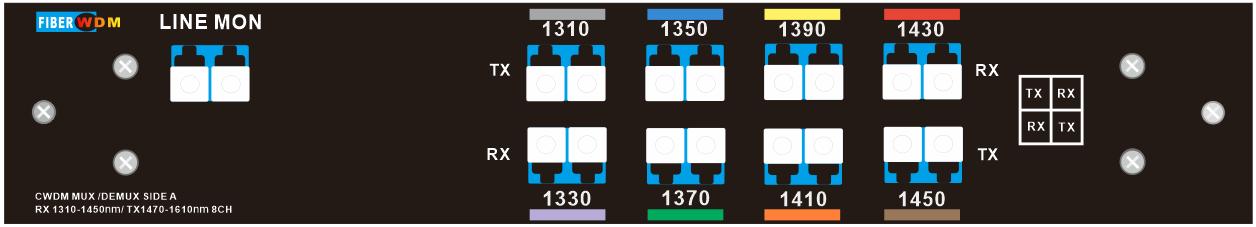

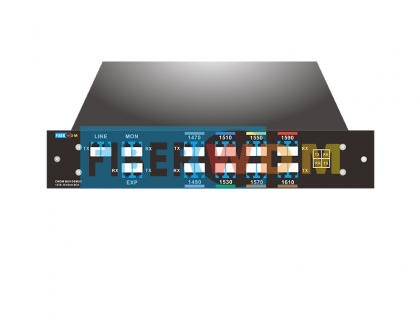

Side A Single Fiber 8CH CWDM MUX DEMUX

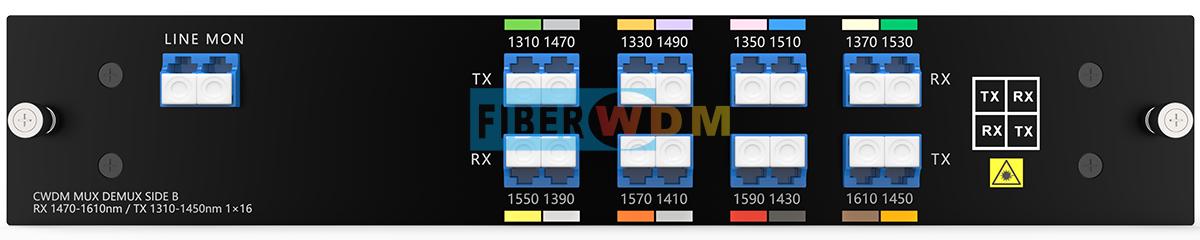

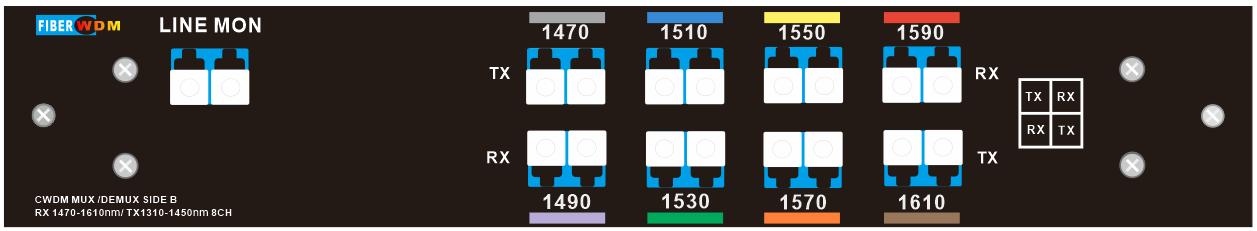

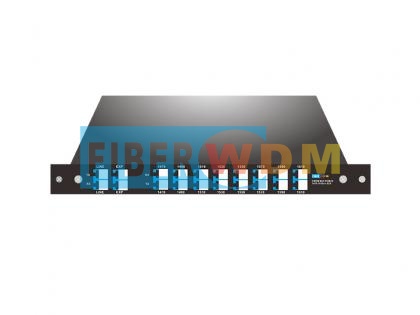

Side B Single Fiber 8CH CWDM MUX/ DEMUX

Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.

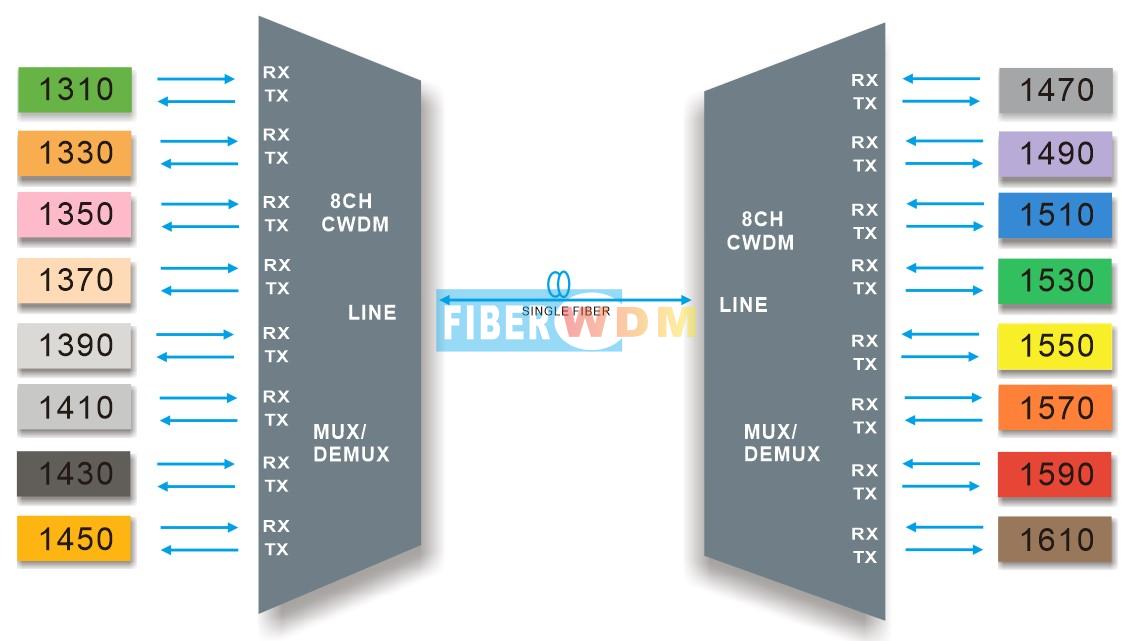

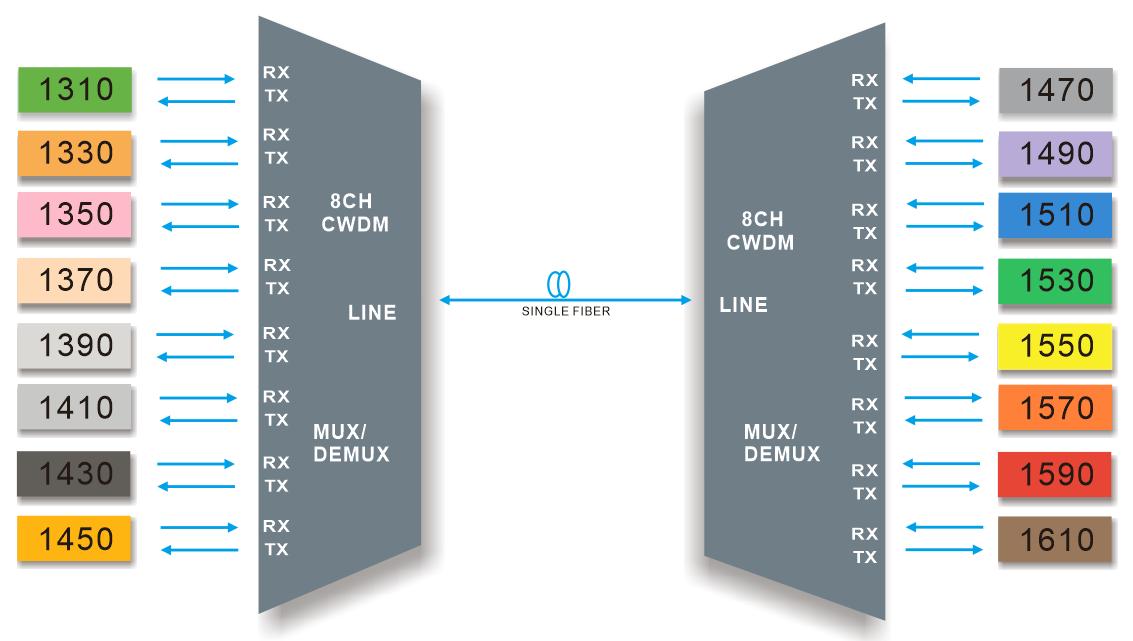

Line Link

8CH CWDM MUX/ DEMUX Single fiber transmission

8Channels (16 waves) CWDM MUX DEMUX, should be used in pairs, which transmits and receives different wavelengths, support 8channels difference business, such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.

Product Specification

Wavelength	8ch (16waves) 1310-1610nm	Channel Spacing	20nm
Channel Passband	±6.5nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 4.8dB	Link Loss	≤ 5.6dB
Insertion Loss @ 1% Mon	≤ 26dB	Center Wavelength Accuracy	±0.05nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	LGX BOX 0.5KG 2Slot 1u Rack 2.5KG	Dimensions (HxWxD)	LGX BOX19020039mm 2Slot 1u Rack 44440230mm

Note: Specified with connectors.

Package Information

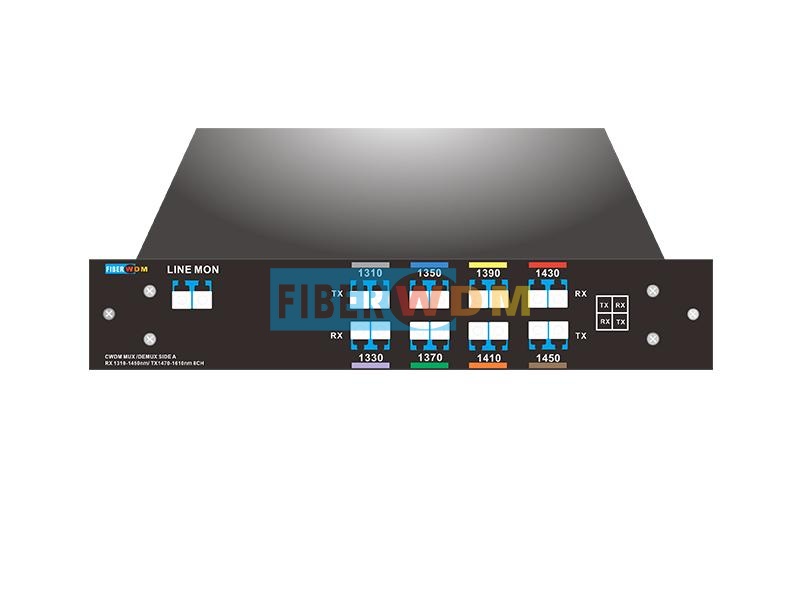

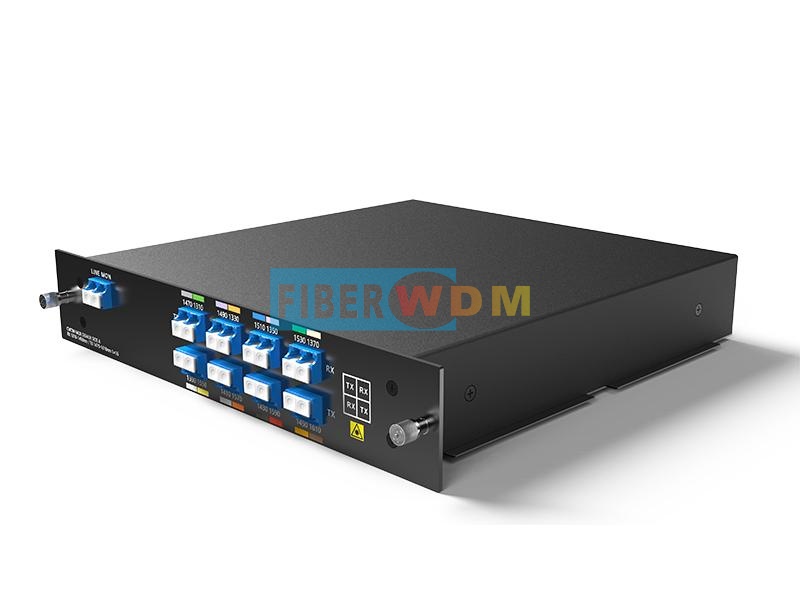

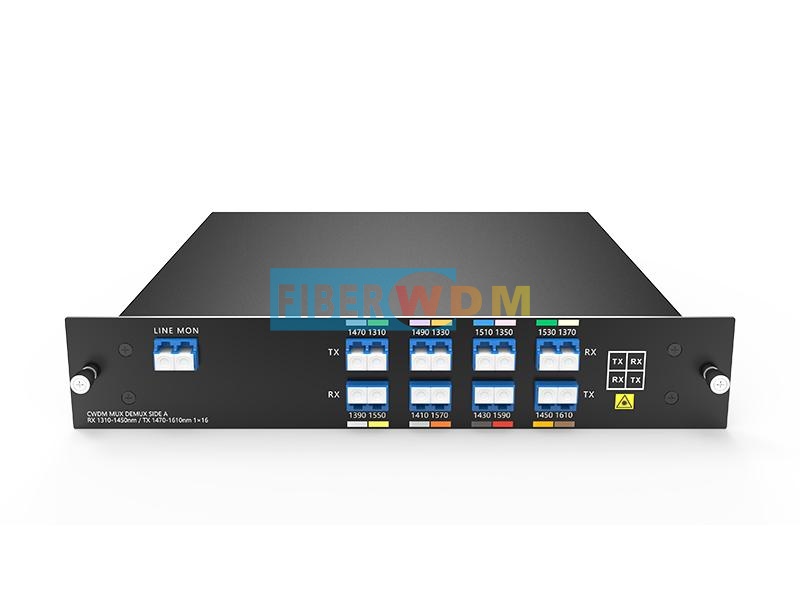

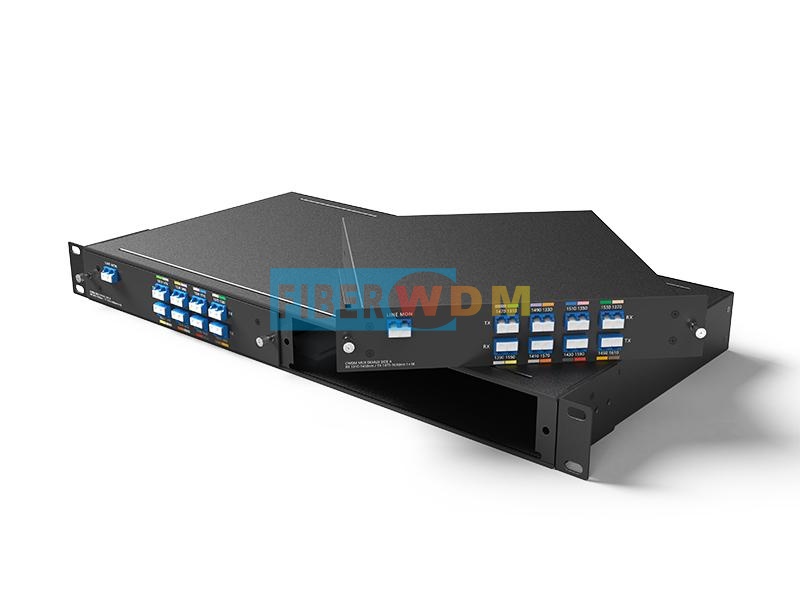

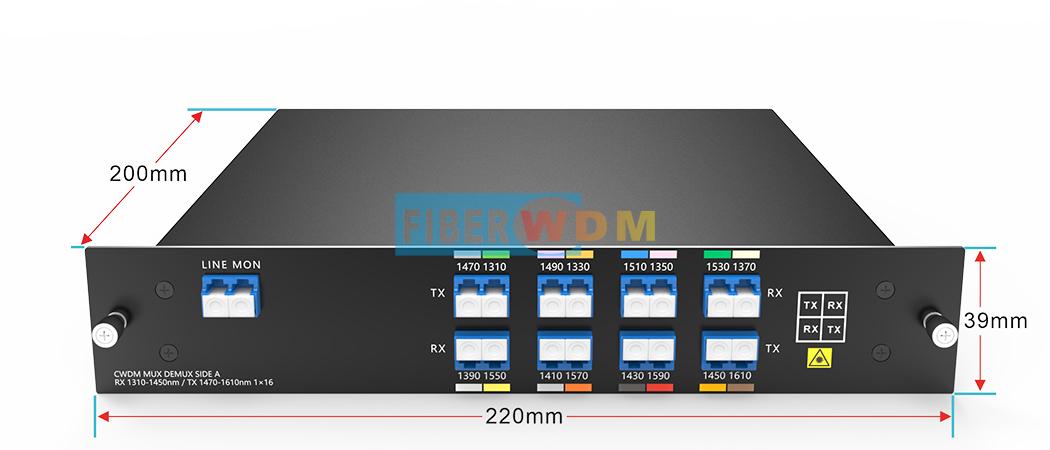

Plug-in LGX Box

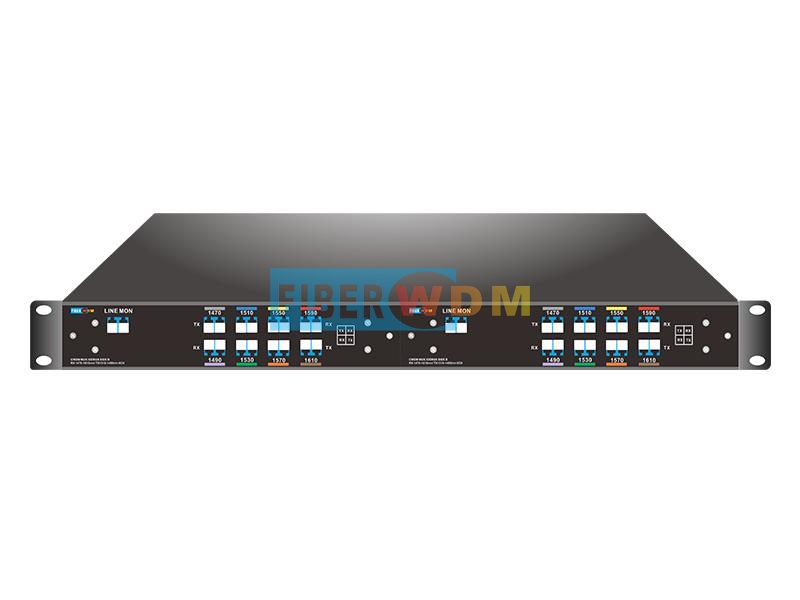

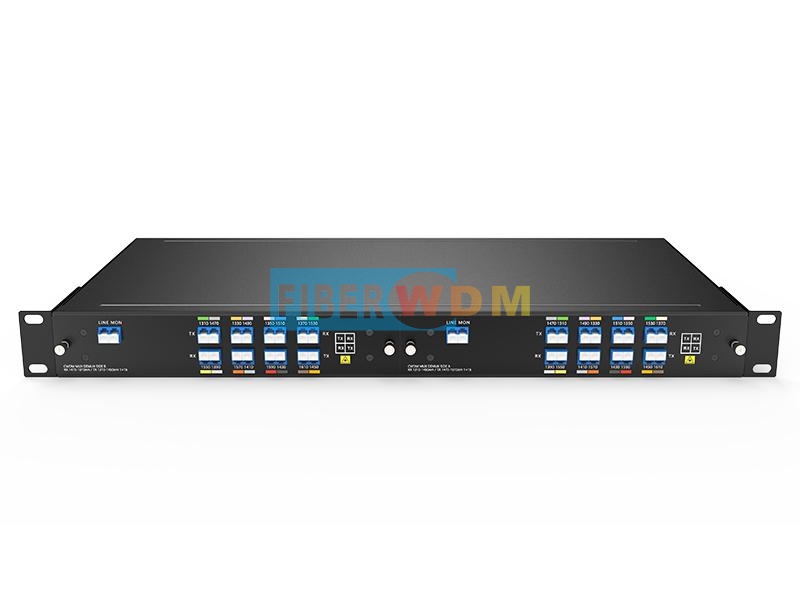

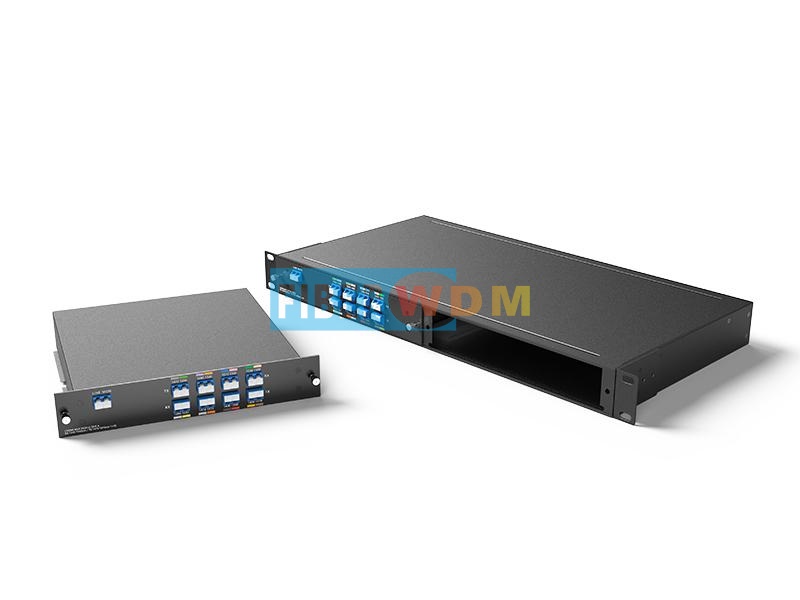

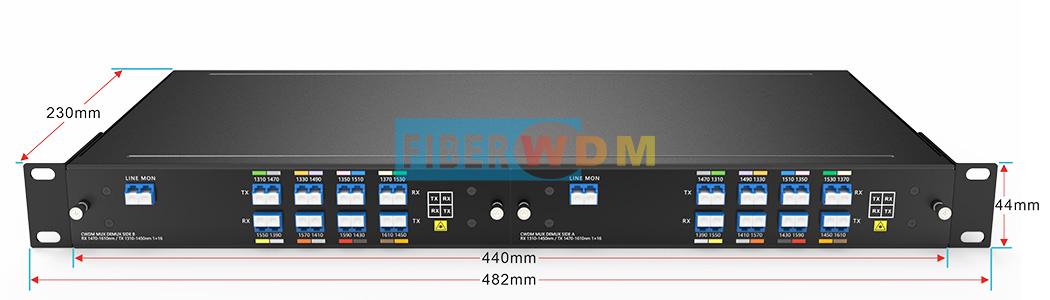

2-Slot 1U Rack for LGX BOX

Order Information

Product No	Product description
CM16-1U01-3161M	CWDM MUX /DEMUX 8CH 16waves(RX1310nm~1450nm/ TX1450nm~1610nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box
CD16-1U01-3161M	CWDM MUX /DEMUX 8CH 16waves(RX1470nm~1610nm/ TX1310nm~1450nm ) With Monitor Port, Single fiber, LC/UPC , Plug-in LGX Box
1U02-2LGX	19” inch 1U rack with 2 slot for Plug-in LGX box, 44023044mm

Note: We Support Customized Design, please contact us by email.
